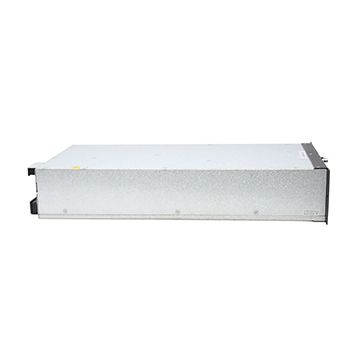

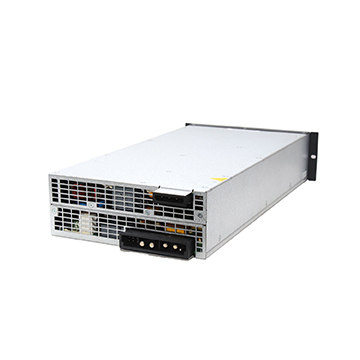

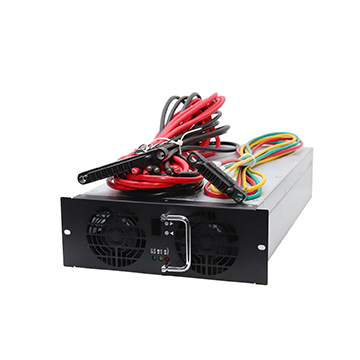

MXR100200B 20KW low voltage high current ev dc fast charger module
-
Excellent advantages
>Ultra-wide
Output voltage range 20v-120v
The ultra-wide output voltage range of MXR100200B can meet the charging requirements of low voltage.
>Super charging current 200A
The super charging current of MXR100200B can greatly reduce the charging time.Main features
Wide output voltage range,20~120VDC, suitable for low-speed of EVs.
Wide operating temperature range at full power, -40℃～50℃;
Full load efficiency is higher than 95%, high efficiency in the whole working range, and more energy saving;
Ultra-low standby power consumption, the whole series of products are controlled within 8W;
The current in the low-voltage area does not shrink, and the charging speed is faster;The module is built with residual pressure relief loop to reduce system cost and improve system reliability.
Characteristic Curve
-
-
Output Power20kw
-
Input Voltage190-530Vac, three-phase + protective earth
-
Input Current<40A
-
Grid Frequency45-65Hz
-
Power Factor≥0.99 (10KW≤Output power ≤20KW)
-
Output Voltage Range20-120Vdc
-
Output Current Range0~200A (continuously adjustable)
-
Rated Current200A
-
Voltage stabilized accuracy≤±0.5% （60V-100V，0～20MHz）
-
Current stabilized accuracy≤±1%(Output current 20% rated current~100% rated current value)
-
Current Sharing Imbalance≤±5%
-
Ripple Peak to Peak≤1%
-
Operating Temperatue-40℃～75℃, output derating above 50℃
-
Storage Temperature-40℃～+75℃
-
Relative Humidity≤95% RH without condensation
-
MTBF>500000 hours
-
Size(W×D×H)218×459×84mm
-
Weight≤12kg
-
Efficiency(full load)>93.5%
-
Cooling ModeFan cooling
-
Standby Power consumption8.5W+/-0.5W
-
Communication MethodCAN bus
-
Parallel Module Quantity≤60 pieces
-
IndicatorGreen: normal operation Yellow: alarm Red: fault
-
CertificationUL
-
ITHD≤5%(10kw≤output power≤20kw)
-
AltitudeNo derating below 2000m,When the altitude is above 2000m, the operating temperature decreases by 1℃ for each additional 100 m
-
