MXC100080B 80kW 1000V SIC power module bi directional dc dc converter for V2G
The MXC100080B is an 80kW high-efficiency bidirectional DC/DC converter featuring full SiC power devices and a wide 200–1000Vdc range. Engineered for V2G and EV charging infrastructure, it delivers >98.5% efficiency, superior thermal stability, and ultra-fast response for dynamic power exchange. Its compact footprint, CAN communication, and intelligent control make it an excellent choice for EV charging stations, vehicle-to-grid operations, and advanced battery energy storage.
-
The MXC100080B is a high-power bidirectional DC-DC charging module specifically designed for V2G (Vehicle-to-Grid) applications. Featuring a single-stage topology and full SiC power devices, the module is complemented by intelligent optimization algorithms, delivering industry-leading performance advantages.The MXC100080B is a high-power bidirectional DC-DC charging module specifically designed for V2G (Vehicle-to-Grid) applications. Featuring a single-stage topology and full SiC power devices, the module is complemented by intelligent optimization algorithms, delivering industry-leading performance advantages.
Key features:
- Ultra high efficiency: (>98.5%)
- Ultra-high power density (>77W/in³)
- Ultra-high protection: Glue-filling process

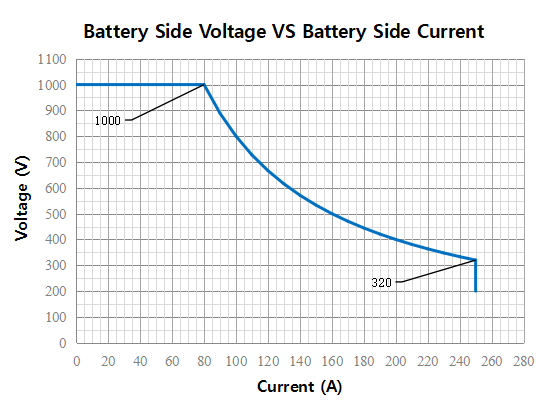

Characteristic Curve:
-
-
Output Power80kw
-
High Voltage Side Voltage Range200VDC～1000VDC
-
High Voltage Side Max Current250A
-
High Voltage Side Stabilized Voltage Precision≤±0.5％
-
High Voltage Side Stabilized Current Precision≤±1% (Output loading 20%~100% rated range)
-
High Voltage Side Ripple Peak≤1%
-
High Voltage Side Current Sharing Imbalance≤5%
-
Low Voltage Side Voltage Range750VDC ~ 850VDC
-
Low Voltage Side Max Current102A
-
Operating Temperatue－30℃~＋75℃, output derating at above 50℃
-
Altitude≤ 2000m, output derating above 2000m
-
Size(W×D×H)400×485×87mm
-
Weight<20kg
-
Efficiency(full load)>98.5%
-
Isolated MethodHigh Frequency Isolation
-
Communication MethodCAN Communication
-
Cooling ModeFan cooling
-
Parallel Module Quantity≤60 pieces
-
